Product Parameters
|
Model |
51.2V 100Ah |
51.2V 200Ah |
51.2V 314Ah |
| Rated Voltage |
51.2V |
||
|
Nominal Capacity |
100Ah |
200Ah |
314Ah |
| Energy | 5.12KWh | 10.24KWh | 16.07KWh |
| Size(mm) | 520*600*202 | 565*540*277 | 500*950*275 |
| Weight |
52Kg |
100Kg |
130Kg |
| BMS Protection Function |
Over charge protection, Over discharge protection, Temperature protection, Balanced function |
||
| Charge-end-off Voltage |
58.4V |
||
| Max. Continuous Charging Current |
100A |
100A |
200A |
|
Max. Continuous Discharging Current |
100A |
100A |
200A |
|
Peak Discharge Current |
200A（2S） |
200A（2S) |
300A（2S) |
| Charge Temperature |
0-55℃ |
||
| Discharge Temperature |
-20-60℃ |
||
| Storage Temperature |
Within 2 months：-20℃~40℃，Within 6 months：-10-35℃ |
||
| Waterproof Level |
IP52 |
||
|
Optional |
RS485 /CAN /Dry contact / RS232 |
||
Features
1. Brand-new, grade A lithium iron phosphate battery cells with a service life of over 10 years
2. Quick and easy installation for high construction efficiency
3. Wide compatibility with mainstream inverters on the market
4. Built-in comprehensive BMS ensures low failure rates and minimal after-sales service
5. Supports up to 16 units in parallel for capacity expansion, allowing for flexible configuration
Explore our comprehensive factory capabilities and customized solutions
Applications

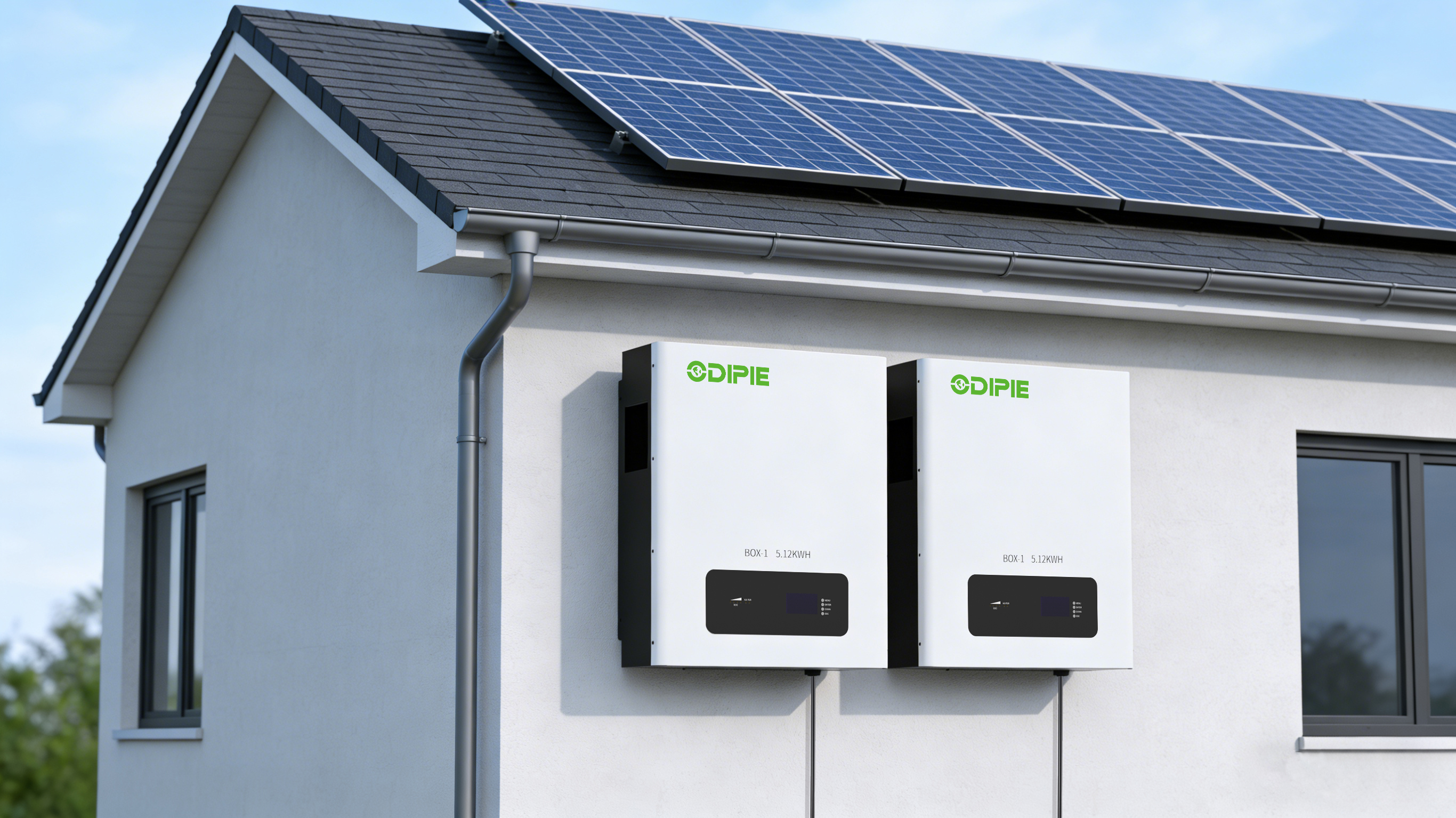

Applications of residential solar power and energy storage
FAQ
A: Sample orders start at 1 set, with small batches of 50 sets and large batches of 500 sets or more. We understand the needs of partners of all sizes.
A: We accept payment for samples, and the sample fee will be refunded upon placement of a bulk order. Sample lead time is 7–10 days.
A: We provide a complete set of certified scanned copies and test report summaries, with UN 38.3 test reports and MSDS documents included for each batch.
A: The unit features a lightweight design and can be mounted directly on standard solid walls or load-bearing walls. No custom cabinet is required—just a simple mounting bracket—making installation on home walls hassle-free.
A: We recommend mounting it vertically flush against the wall, leaving a small gap at the top and bottom for ventilation. unlike rack-mounted batteries, which require specific cabinet spacing. It can be flexibly installed in corners or on unused wall space on balconies.
A: It is primarily designed for indoor residential installation and is suitable for shaded, well-ventilated areas such as balconies, storage rooms, and entryways. Direct exposure to rain or intense sunlight is not recommended. Compared to rack-mounted models, it is more suited for indoor residential use.
