Product Parameters
|
Model |
51.2V 100Ah |
51.2V 200Ah |
51.2V 314Ah |
| Rated Voltage |
51.2V |
||
|
Nominal Capacity |
100Ah |
200Ah |
314Ah |
| Energy | 5.12KWh | 10.24KWh | 16.07KWh |
| Size(mm) | 485 *505 * 155 | 530*530*236 | 665*545*236 |
| Weight |
47Kg |
70Kg |
120Kg |
| BMS Protection Function |
Over charge protection, Over discharge protection, Temperature protection, Balanced function |
||
| Charge-end-off Voltage |
58.4V |
||
| Max. Continuous Charging Current |
100A |
100A |
200A |
|
Max. Continuous Discharging Current |
100A |
100A |
200A |
|
Peak Discharge Current |
200A（2S） |
200A（2S) |
300A（2S) |
| Charge Temperature |
0-55℃ |
||
| Discharge Temperature |
-20-60℃ |
||
| Storage Temperature |
Within 2 months：-20℃~40℃，Within 6 months：-10-35℃ |
||
| Waterproof Level |
IP50 |
||
|
Optional |
RS485 /CAN /Dry contact / RS232 |
||
Features
1. The entire series uses high-rate lithium iron phosphate (LFP) battery cells, which are safe and stable, resistant to high and low temperatures, and offer a longer service life for residential energy storage.

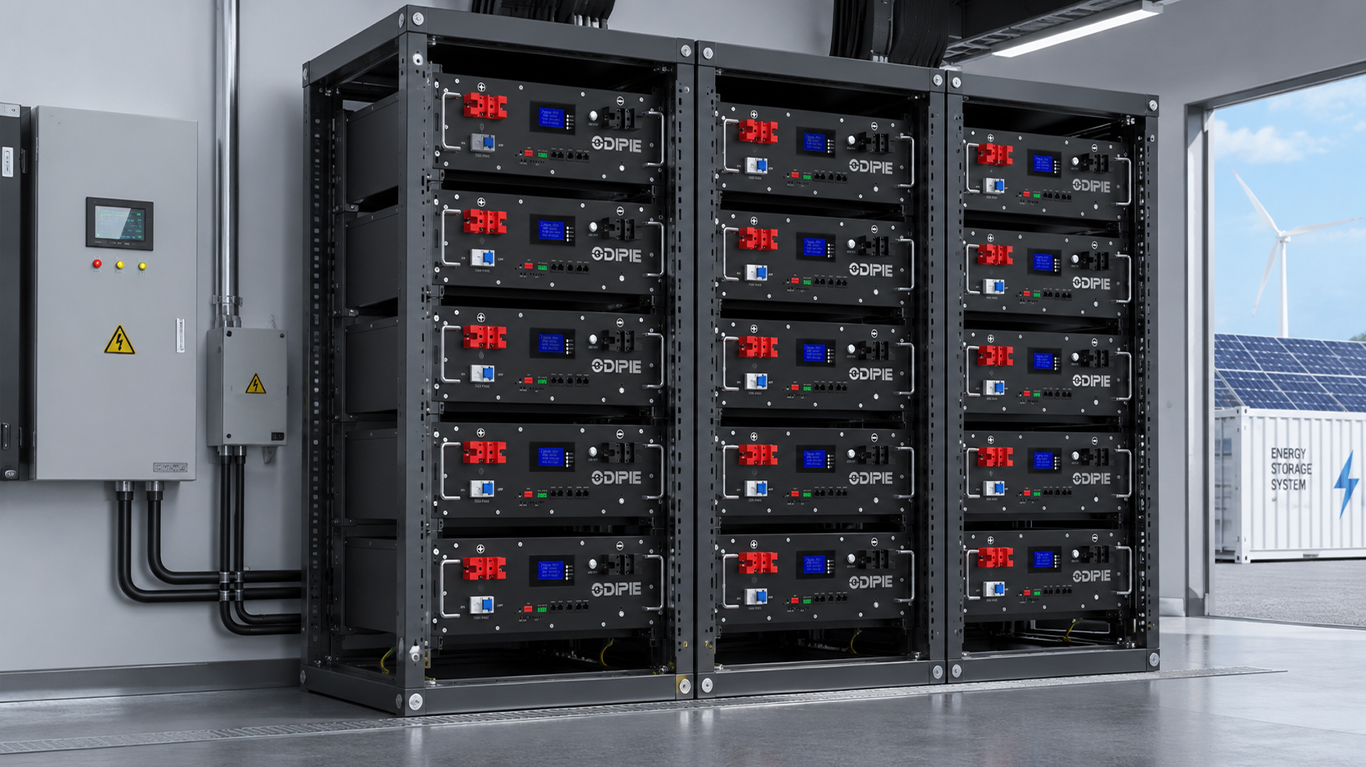

2. Featuring a standard rack-mounted integrated design, it is easy to install and compatible with residential energy storage cabinets and photovoltaic energy storage systems.
3. Equipped with a built-in intelligent balancing BMS protection system, it provides multiple safety protections against overcharging, over-discharging, overcurrent, short circuits, and extreme temperatures.
4. Supports flexible parallel connection of multiple batteries for capacity expansion and can be paired with inverters of various power ratings to meet the energy storage needs of households of all sizes.
5. Excellent high-current continuous discharge performance, capable of reliably powering home appliances, high-power equipment, and providing whole-house emergency backup power during outages.
6. High charge/discharge conversion efficiency and high PV energy utilization, effectively reducing household electricity costs while offering practical, energy-saving, and eco-friendly benefits.
7. Strong compatibility with various residential energy storage scenarios, including off-grid/grid-connected PV systems, home backup power, and villa energy storage.
Explore our comprehensive factory capabilities and customized solutions
Applications
UPS (Uninterruptible Power Supply) systems
FAQ
A: Sample orders start at 1 set, with small batches of 50 sets and large batches of 500 sets or more. We understand the needs of partners of all sizes.
A: We accept payment for samples, and the sample fee will be refunded upon placement of a bulk order. Sample lead time is 7–10 days
A: We provide a complete set of certified scanned copies and test report summaries, with UN 38.3 test reports and MSDS documents included for each batch.
A: Up to 16 batteries of the same specification can be connected in parallel to easily expand energy storage capacity. This configuration is compatible with energy storage systems of various power ratings and is simple to install and commission.
A: For everyday household use, we recommend setting the minimum discharge threshold to 20% SOC. This effectively protects the battery cells and significantly extends the overall service life of the battery.
A: It is compatible with mainstream equipment such as universal 48V solar inverters, grid-connected/off-grid energy storage systems, home backup power supplies, and backup power supplies for telecommunications equipment rooms, offering strong compatibility.
