Product Parameters
|
Model |
24V 50Ah |
24V 100Ah |
24V 150Ah |
24V 230Ah |
|
Rated Voltage |
25.6V |
|||
|
Nominal Capacity |
50Ah | 100Ah | 150Ah | 230Ah |
|
Energy |
1.28KWh | 2.56KWh | 3.84KWh | 5.888KWh |
|
Size(mm) |
311*190*210 | 348*285*245 | 400*320*272 | 488*380*275 |
|
Weight |
15.8Kg | 27.3Kg | 37.6Kg | 48.5Kg |
|
BMS Protection Function |
Over charge protection, Over discharge protection, Temperature protection, Balanced function | |||
|
Charge-end-off Voltage |
29.2V |
|||
|
Max. Continuous Charging Current |
50A | 100A | 150A | 200A |
|
Max. Continuous Discharging Current |
100A | 100A | 150A | 200A |
|
Peak Discharge Current |
150A(3S) | 200A（3S） | 300A(3S) | 400A(3S) |
|
Charge Temperature |
0-55℃ |
|||
|
Discharge Temperature |
-20-60℃ |
|||
|
Storage Temperature |
Within 2 months：-20℃~40℃，Within 6 months：-10-35℃ | |||
|
Waterproof Level |
IP65 |
|||
|
Optional |
Bluetooth/Advanced Screen/Heating film/RS232/CAN | |||
Features
1. Metal waterproof housing with IP65 rating
2. Uses only Grade A battery cells from major brands, such as EVA
3. Long service life, with over 2,000–5,000 charge cycles
4. Internal mounting bracket for shock absorption
5. Bluetooth app connectivity
6. Built-in high-quality BMS with abnormal temperature protection
7. Supports communication (RS232 and CAN interfaces)
8. Customization available; factory direct sales
Explore our comprehensive factory capabilities and customized solutions
Applications

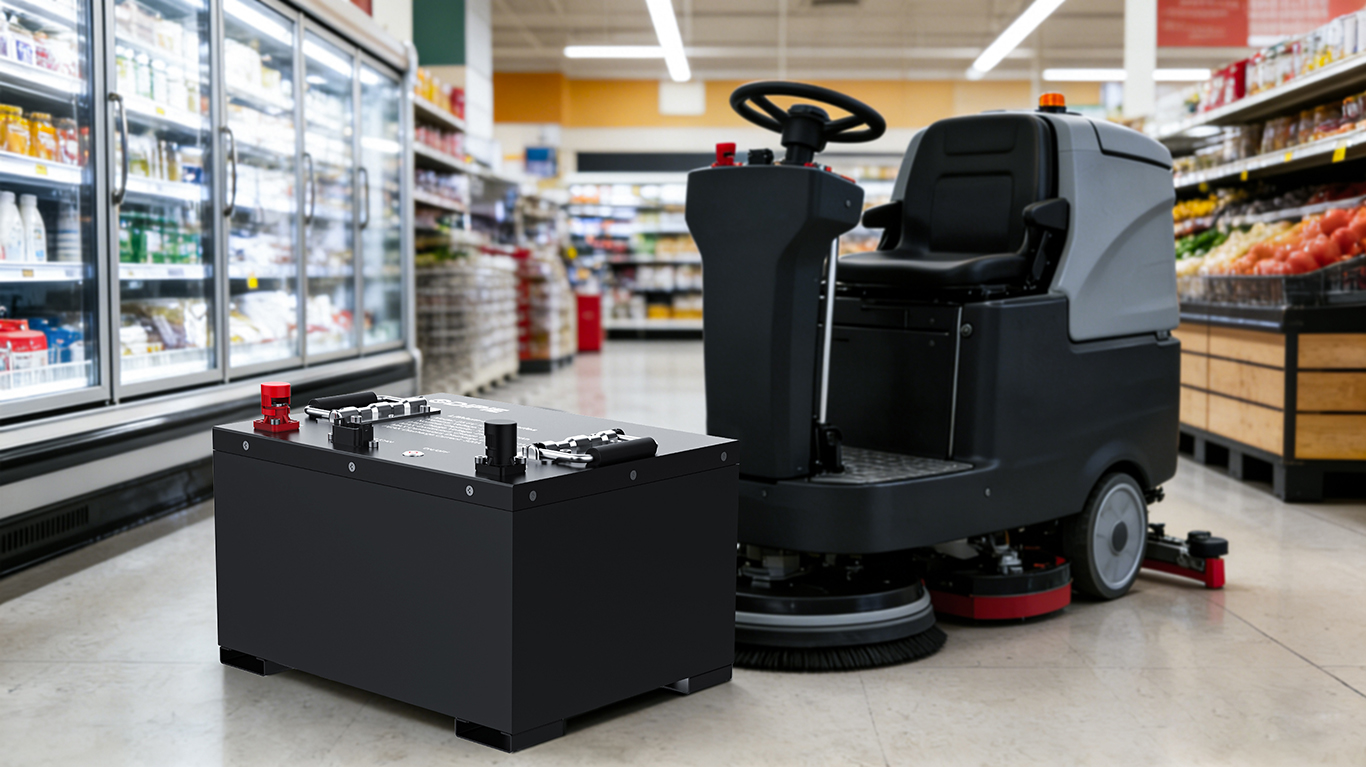

Floor Scrubber
FAQ
A: Universal design suits mainstream 24V cleaning equipment models for direct replacement.
A: This battery is manufactured using brand-new, Grade A lithium iron phosphate cells and has a cycle life of over 2000 cycles, providing 6–8 years of service.
A: We accept payment for samples, and the sample fee will be refunded upon placement of a bulk order. Sample lead time is 7–10 days
A: We provide a complete set of certified scanned copies and test report summaries, with UN 38.3 test reports and MSDS documents included for each batch.
A: Multiple capacity options meet short, medium and long duration working demands.
A: Integrated BMS guards against overcharge, overdischarge, overcurrent and short circuit.
A: Custom size, capacity and branded processing are available for bulk orders.
A: Sample orders start at 1 set, with small batches of 50 sets and large batches of 500 sets or more. We understand the needs of partners of all sizes.
