Product Parameters
| Model | 48V 200Ah |
| Rated Voltage | 48V |
| Nominal Capacity | 200Ah |
| Energy | 9600Wh |
| Size(mm) | H540*565*277 |
| Weight | 100Kg |
| BMS Protection Function | Over charge protection, Over discharge protection, Temperature protection, Balanced function |
| Operating voltage range | 24V-64V |
| Max. Continuous Charging Current | 200A |
| Max. Continuous Discharging Current | 200A |
| Peak Discharge Current | 300A（3S) |
| Charge Temperature | -18-60℃ |
| Discharge Temperature | -35-65℃ |
| Storage Temperature | Optimal long-term storage temperature |
| -10°C ~40℃ | |
| Waterproof Level | IP52 |
| Communication Interface | CAN+RS485+RS232 |
Features
1.Standard 48V system voltage, perfectly compatible with mainstream home solar inverters; plug & play without extra transformer modification, ideal for household off-grid & grid-tied backup storage.

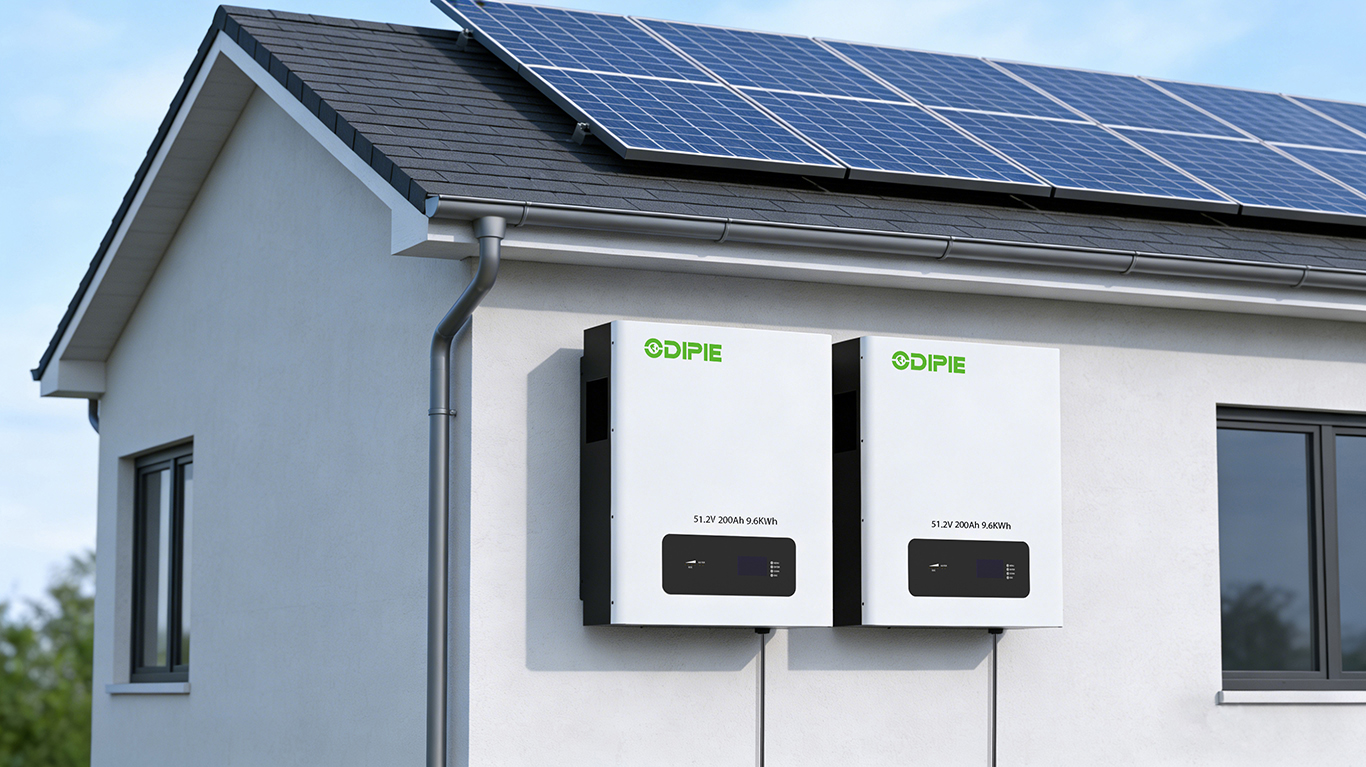

2.Wall-mounted compact cabinet design, lightweight compared with lead-acid battery; save floor space, easy indoor wall installation for garage, utility room and household cabinet.
3.Wide operating temperature from -35℃ ~ +65℃, high capacity retention under low temperature, stable power supply in cold northern areas and high-temperature tropical regions.
4.Unique sodium-ion zero-volt deep discharge recovery feature; no permanent damage after full depletion caused by long-term power cut or continuous rainy days without solar input.
5.Built-in intelligent BMS for overcharge, over-discharge and short-circuit protection; 6000 long service cycles, non-flammable electrolyte, maintenance-free for daily household use.
Explore our comprehensive factory capabilities and customized solutions
Applications
Application scenarios of off grid photovoltaic energy storage for household use
FAQ
A：Yes, standard 48V communication protocol matches mainstream solar inverters. Same installation dimension, plug and play without modifying household circuit or inverter
A：Total capacity: 48×200=9600Wh (9.6kWh). Enough to power fridge, lighting, TV and small home appliances for 1 full day for regular family during blackout.
A：Pre-set hanging holes on cabinet, only solid brick/concrete wall needed. No ground occupation, install on garage/utility room wall easily by one worker.
A：Work stably from -40℃~+65℃, ≥85% capacity at -20℃; 3000~6000 charge cycles, normal service life over 10 years for daily solar storage.
A：Sodium ion supports 0V full deep discharge recovery. Even fully drained for weeks due to rainy no-sun weather, battery can be fully restored after recharging without permanent damage.
A:Sample orders start at 1 set, with small batches of 50 sets and large batches of 500 sets or more. We understand the needs of partners of all sizes.
